BALANCED 2-WAY CONTROL VALVES M1FBN - DN15-80

APPLICATIONS

Balanced control valves type M1FBN are designed for regulating hot water, steam and
hot oil systems. Balanced valves are used in installations where the system pressure
necessitates a closing force greater than available in the actuator pro gram me for a
standard single seated valve

GENERALLY
Sizes: DN15, 20, 25, 32
DN40, 50 ,65, 80
Nom. pressure: PN16
Material: Cast iron
Material (components): Stainless steel
Flanges: EN1092-2 or ANSI B16,5 Class 150

DOWNLOADS
Data sheet: 2.3.03.01
Data sheet spare part: S-2.3.03.01

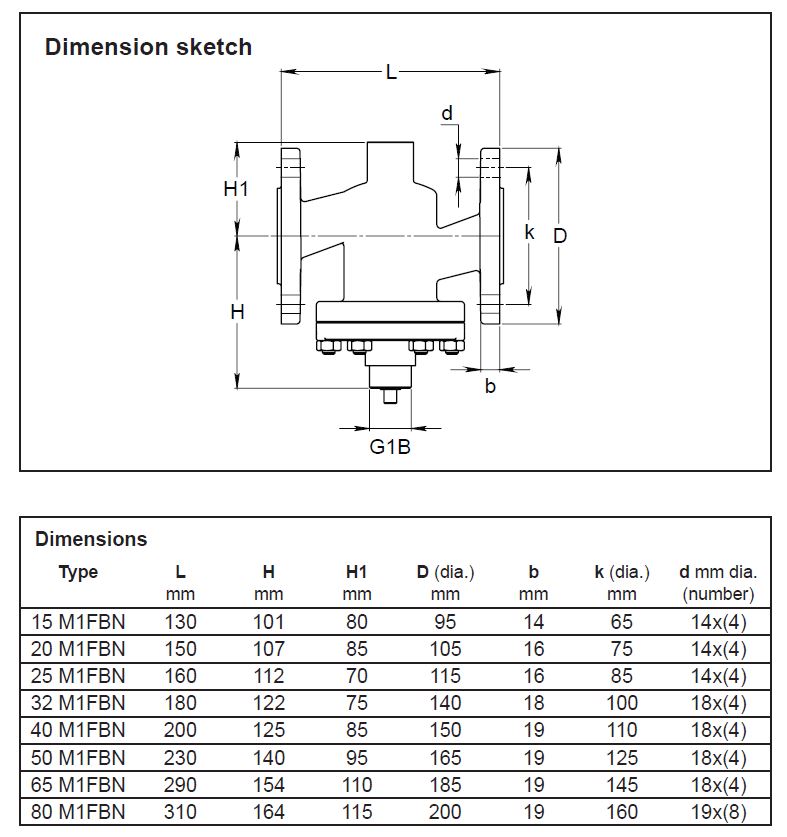

Dimension drawing: 2.3.03.01- Dimension
3D file: 3D file

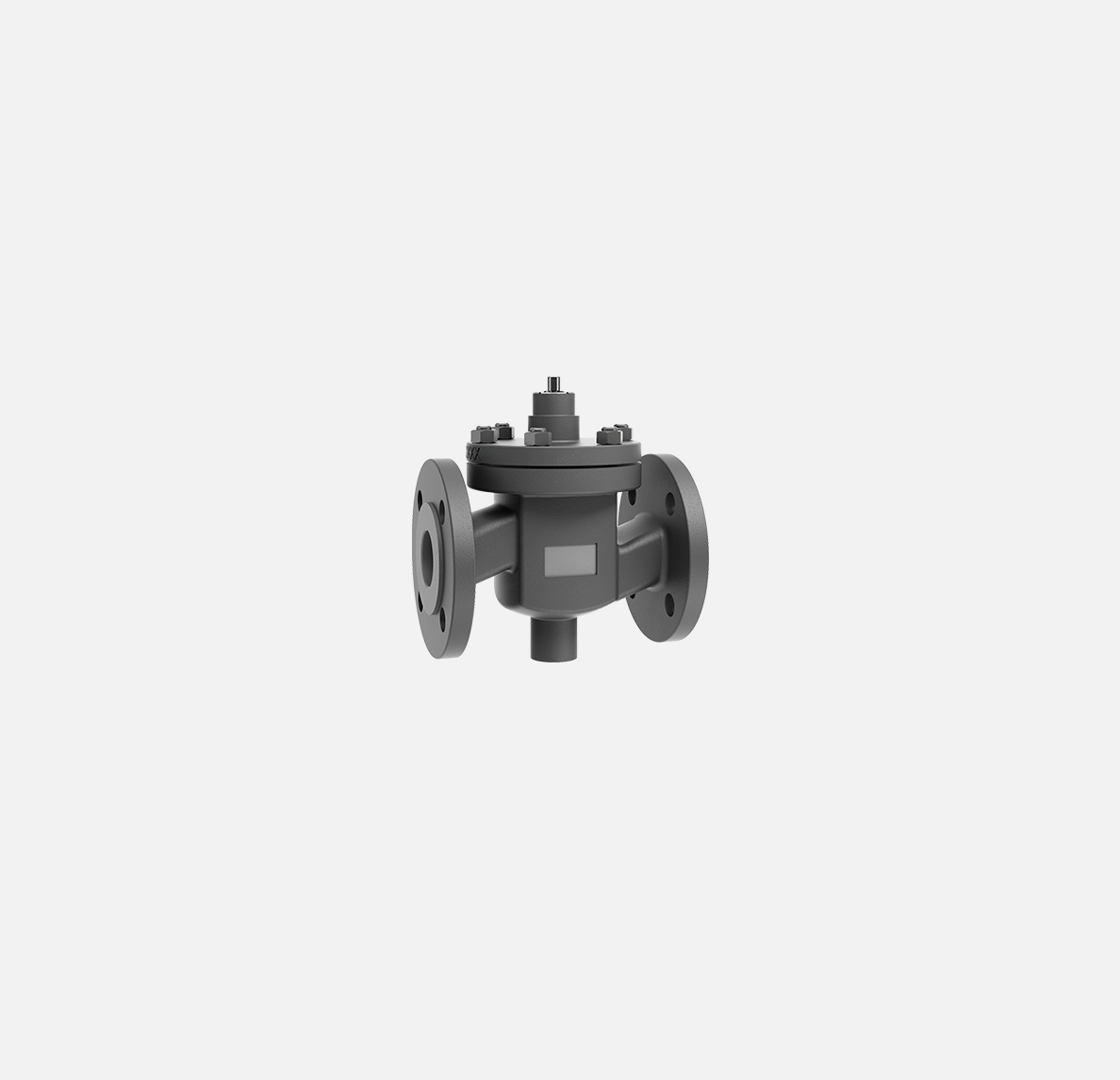

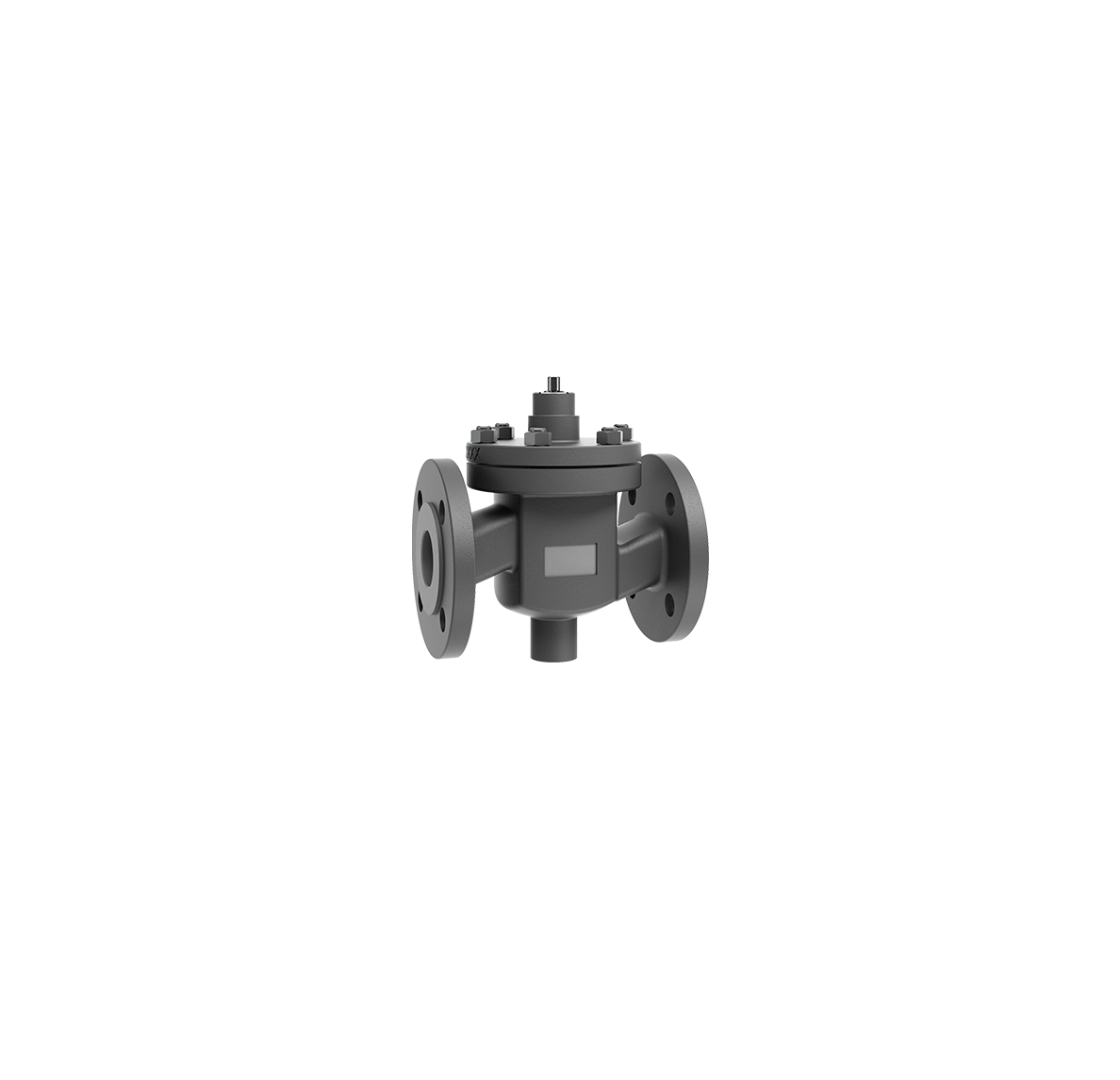

Image: Image PNG
