2-WAY CONTROL VALVES G2FMT-ULL - DN100-400

APPLICATIONS


Control valve type G2FMT-ULL is a two-way control valve with a slide for
quarter turn operation designed for regulating of fresh water, lubricating
oil and other liquid media. The valves are designed for use in conjunction
with industrial processes, district heating and marine installations with
large water or lubricating oil volumes.

GENERALLY
Sizes: DN100, 125, 150, 200, 250
DN300, 350, 400
Nom. pressure: PN10
Material: Nodular cast iron
Material (components): Nodular cast iron
Flanges: EN 1092-2
JIS 5K/10K
ANSI class 150

DOWNLOADS
Data sheet: 2.5.30
Data sheet spare part: PENDING

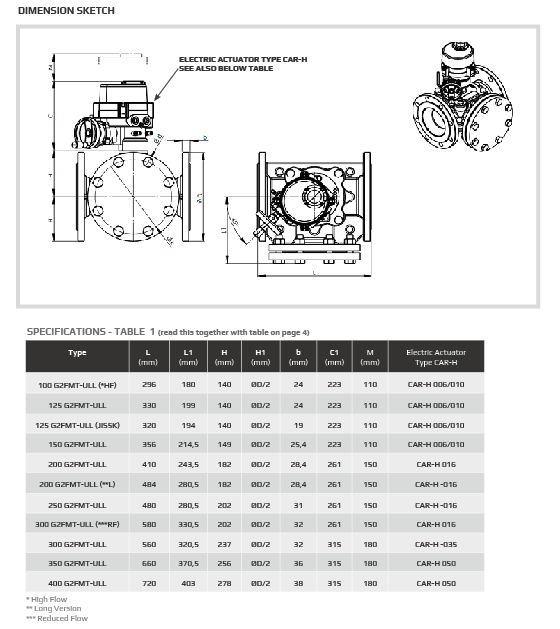

Dimension drawing: 2.5.30- Dimension
3D file: PENDING
Image: Image PNG
