3-WAY CONTROL VALVES G3FMT-SL - DN100-650

APPLICATIONS

Control valve type G3FMT-SL is a three-way control valve with a slide for quarter turn operation
designed for regulating of fresh water, lubricating oil and other liquid media.
The valves are designed for use in conjunction with industrial processes, district heating and
marine installations with large water or lubricating oil volumes.

GENERALLY
Sizes G3FMT-SL - L/R:	DN125, 150, 200, 250 DN300, 350, 400, 500, 550 & 650

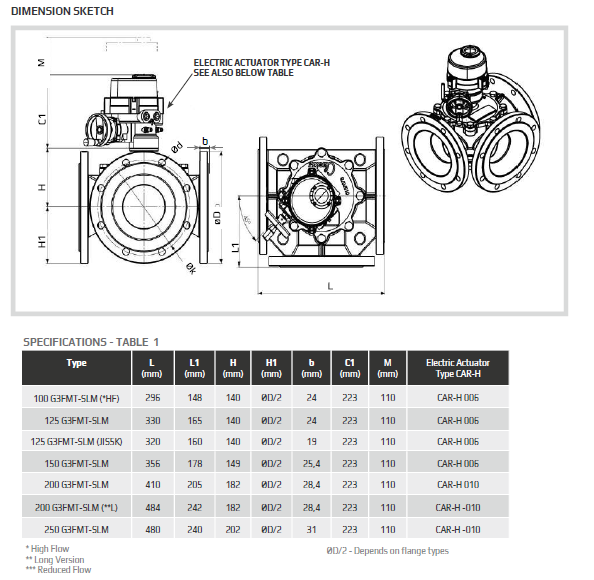

Sizes G3FMT-SL - MIDDLE	DN100, 125, 150, 200, 250
Sizes G3FMT-SL - HIGH FLOW	DN100, 200, 350 & 600
Nom. pressure:	PN10
Material:	Nodular cast iron
Material (components):	Nodular cast iron
Flanges:	EN 1092-2 JIS B 2210 5K/10K ANSI Class 150

DOWNLOADS
Data sheet:	2.6.16 - G3FMT-SL 2.6.18 - G3FMT-SL - MIDDLE 2.6.20 - G3FMT-HIGH FLOW
Data sheet spare parts:	S-2.6.16 - DN100-250 S-2.6.16 - DN300-400
Instruction:	99.212.01

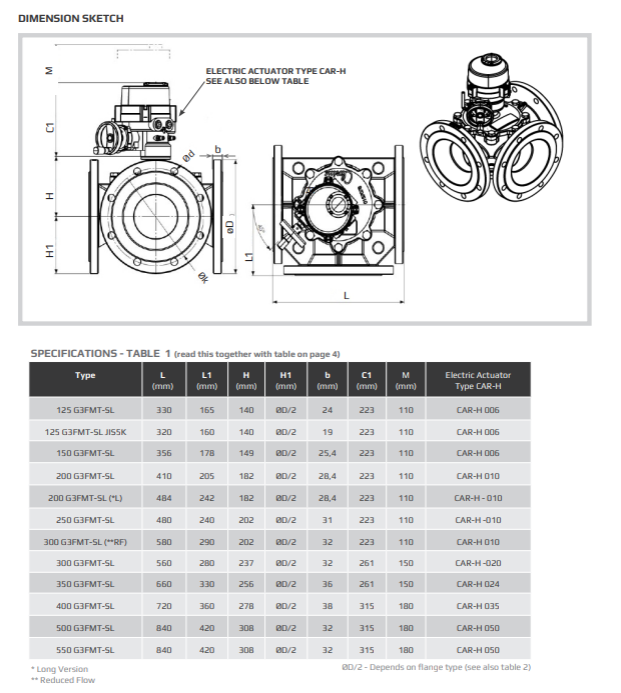

Dimension:	2.6.16 - Dimension 2.6.18 - Dimension 2.6.20 - Dimension
