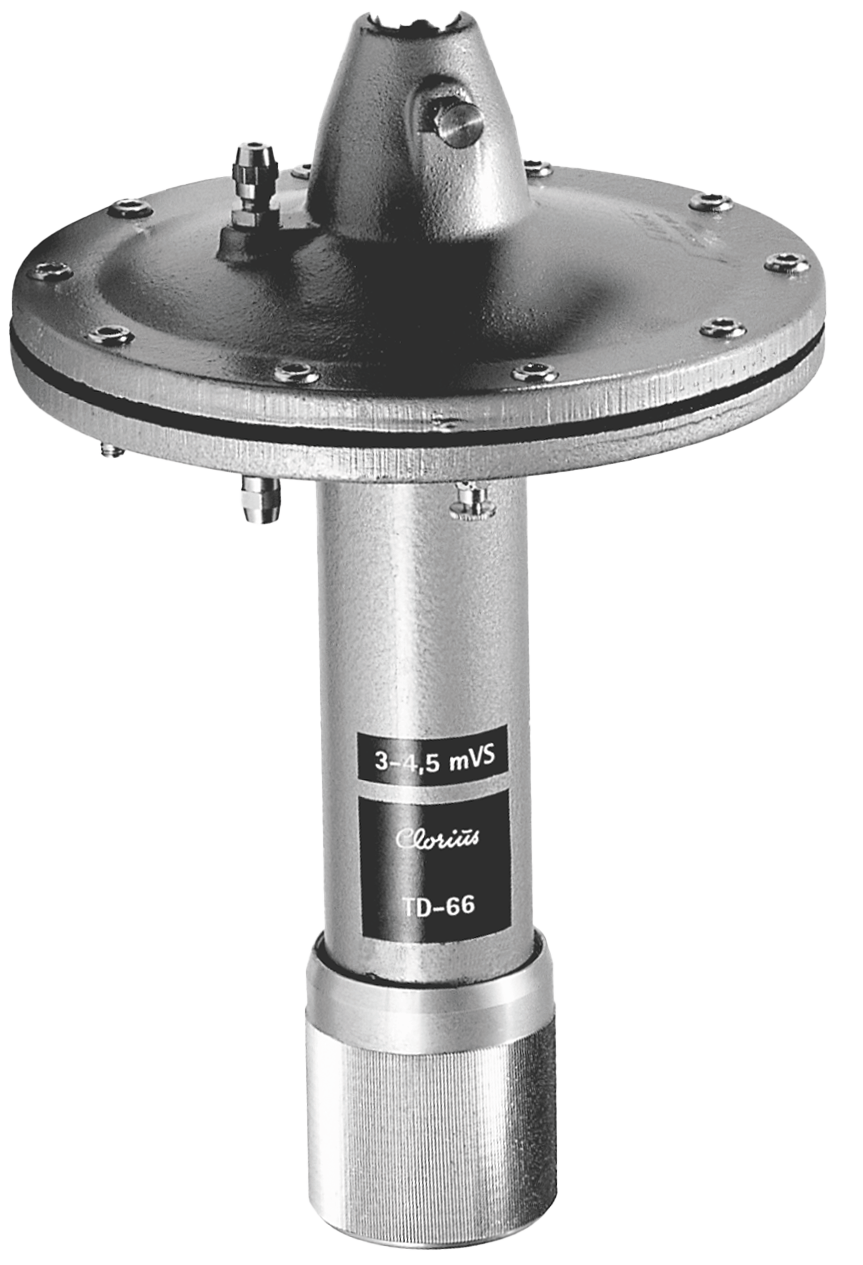

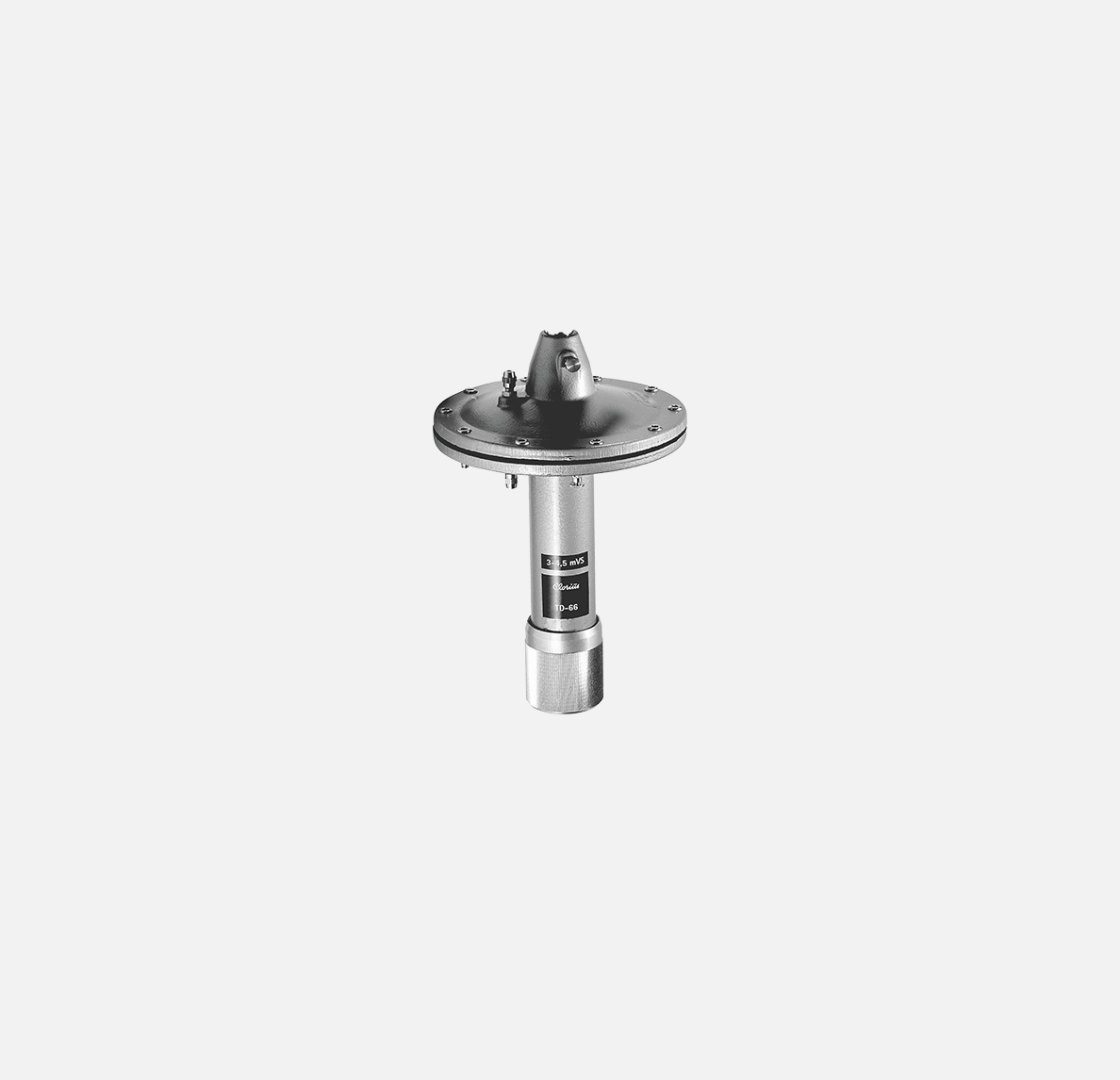

PRESSURE DIFFERENTIAL CONTROLS TYPE TD66

APPLICATIONS

Pressure differential controls, type TD66, comprise a control valve, a diaphragm unit and 2 connecting capillaries. The controls type TD66-4 and TD66-8 can be used with our wide range of 2-way control valves, in sizes from 4 mm up to 80 mm. For further information see technical data and data sheets on individual valves.

GENERALLY
Types	TD66-4 & TD66-8
Material:	Diaphragm: EPDM 2 pcs of capillary pipes in Cu
Pressure stage:	PN 16 (see also valve data sheets)
Weight:	13 kg

DOWNLOADS
Data sheet:	3.9.04
Instruction:	I-99.39.01
Image:	Image PNG
