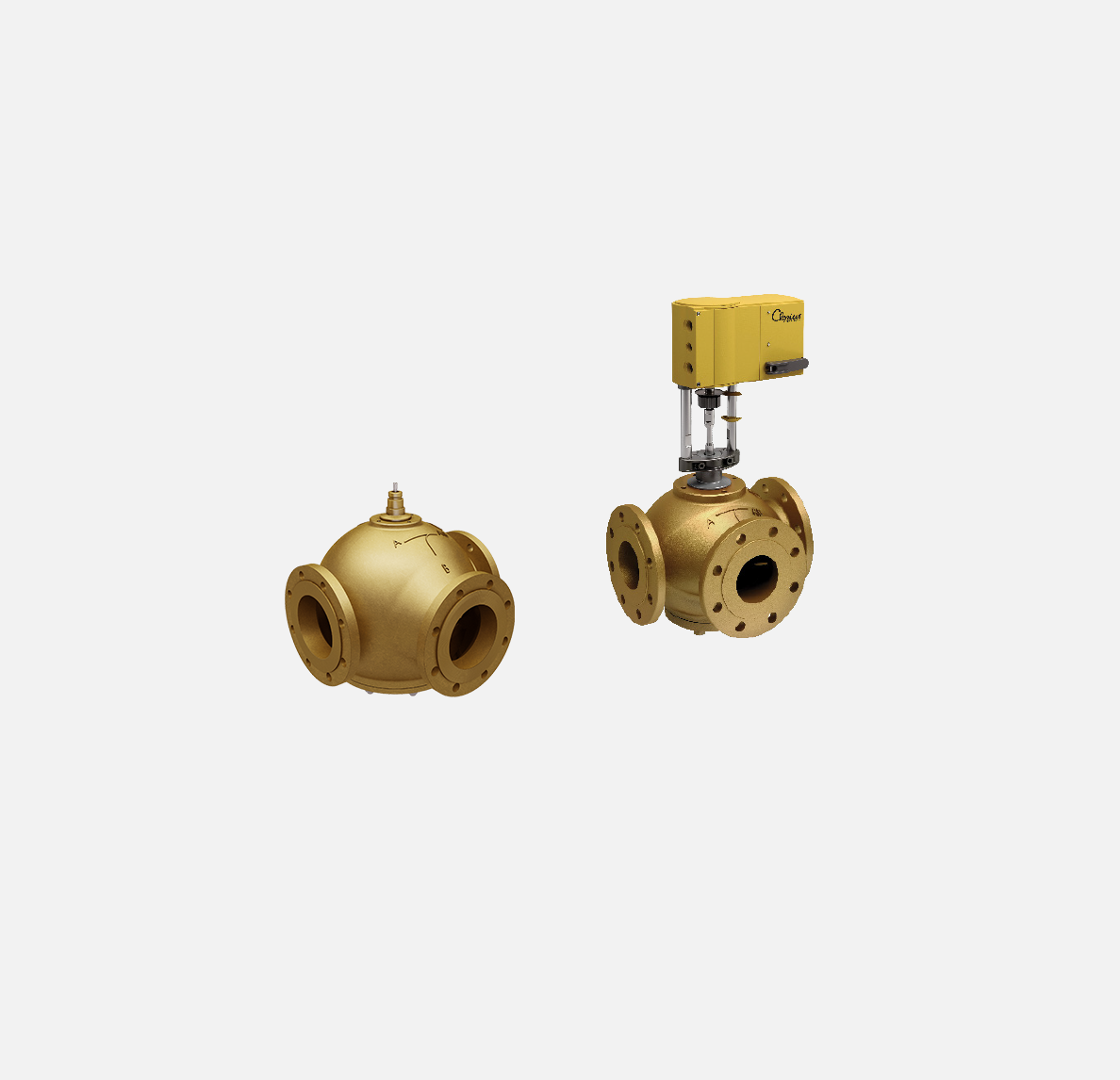

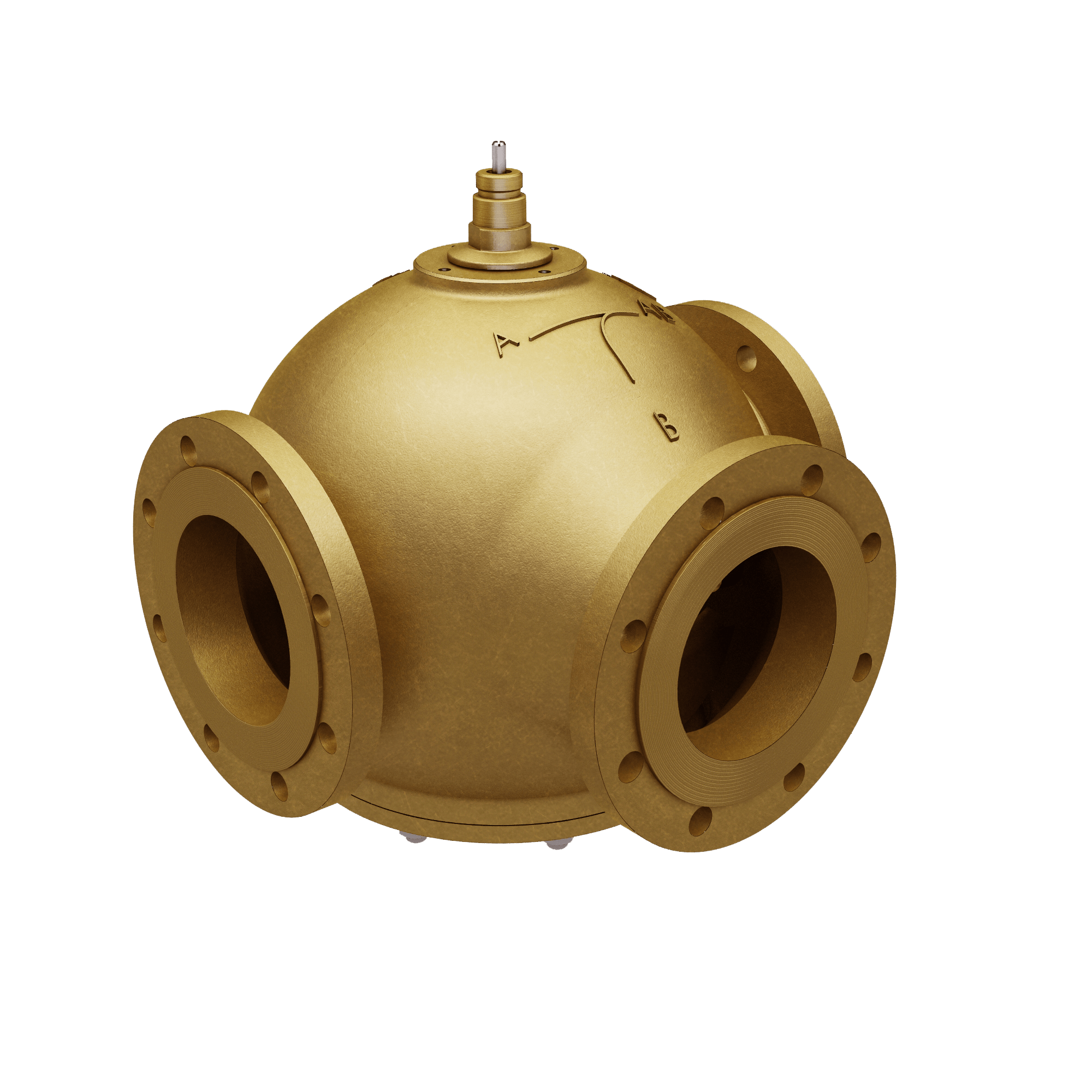

3-WAY CONTROL VALVES L3FA - DN80-300

APPLICATIONS


Control valve type L3FA is designed for regulating of sea water.
The valves are used in conjunction with marine installations, e.g.
cooling of main and auxiliary engines. Designed for use in
conjunction with Clorius valve motor type AVM234 or AVF234.

GENERALLY
Sizes: DN65, 80, 100, 125, 150
DN200/75, 200, 300/250, 300
Nom. pressure: PN10 - DN65 -200
PN6 - DN300/250-300
Material: Gun metal
Material (components): Aluminum/copper alloy
Flanges DIN 86021

DOWNLOADS
Data sheet: 2.2.09.01
Data sheet spare part: S-2.2.09.01
Instruction: 99.22.01

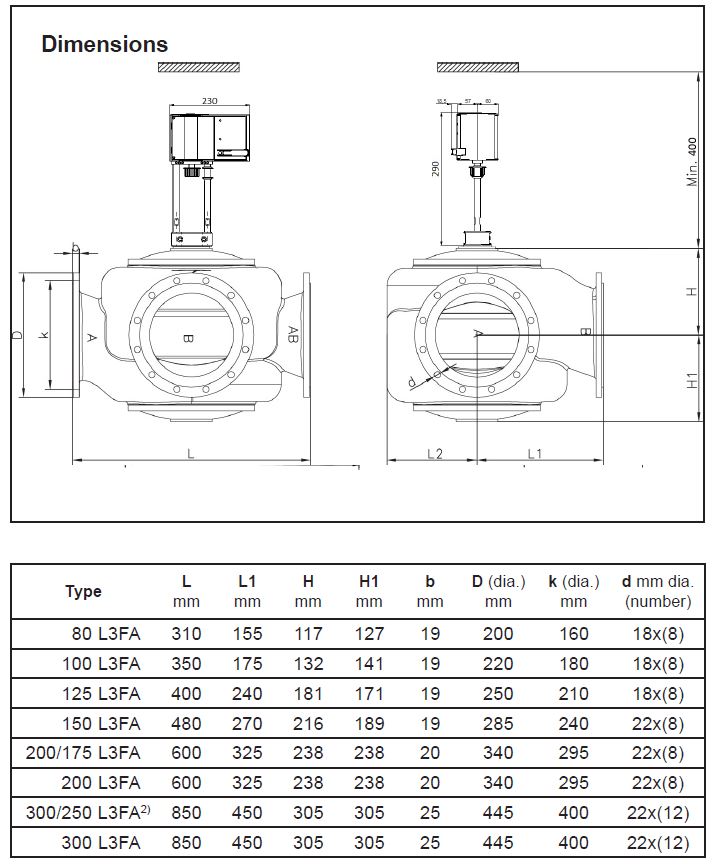

Dimension drawing: 2.2.09.01- Dimension
Image: Image PNG
