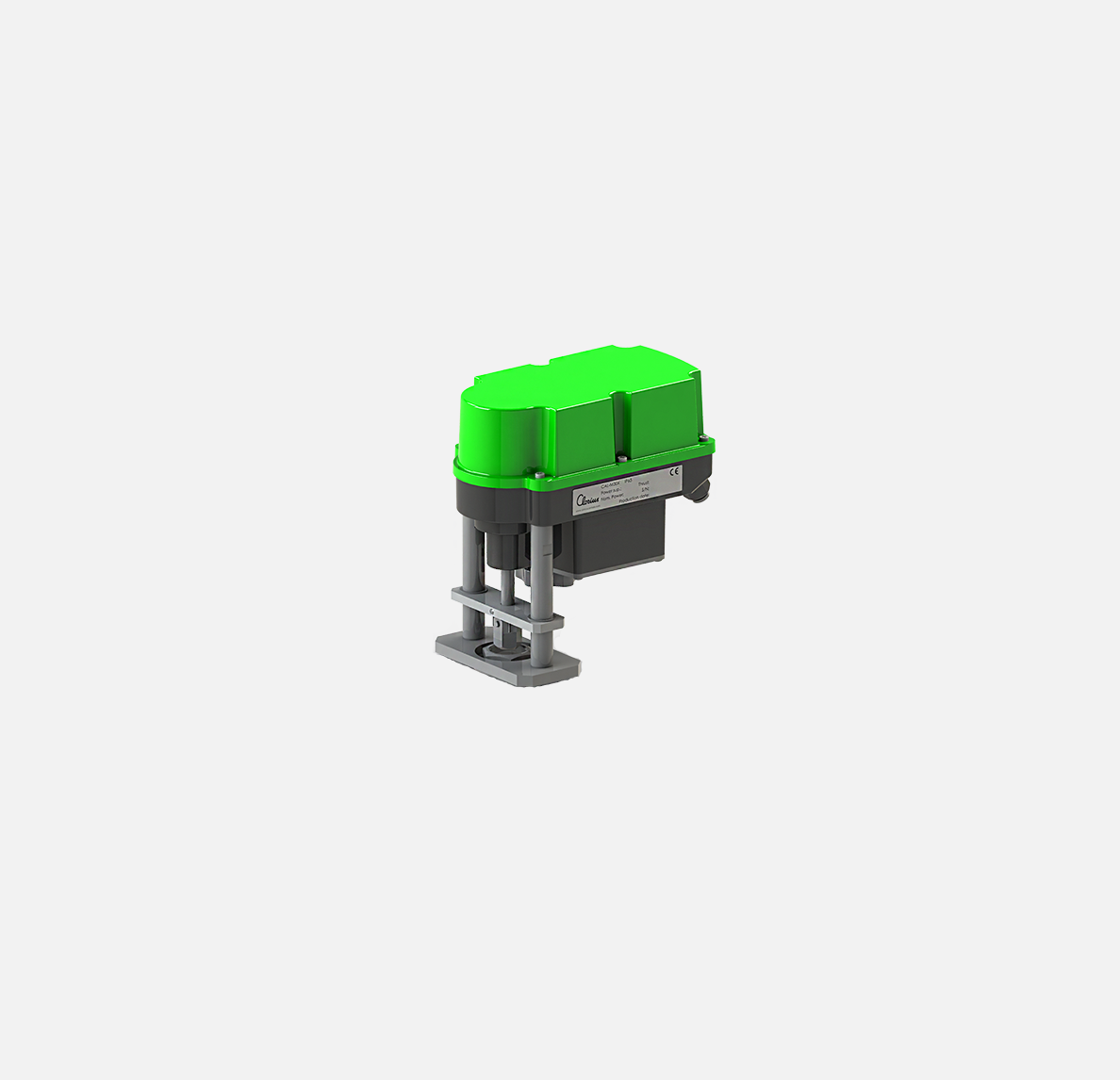

LINEAR ACTUATOR CAL M301 & M302

APPLICATIONS


The main applications are heating, cooling, ventilation and industrial systems
where the medium is water, steam or oil.
The actuator is designed to be used with Clorius 2 and 3-way linear control valves.

GENERALLY
Material: Body and cover: Aluminum/Polycarbonate
Pillar: Steel. 1.4104
Bracket: Galv. steel 1.0037
Colour: Green RAL6018
Weight: 5.6 kg without accessories
Handwheel/positioner: Integrated
Power supply: 24 VAC/DC , 100 - 240 VAC, ±10%

DOWNLOADS
Data sheet: 4.20.01
Data sheet spare part: S-4.20.01
Instruction: I-99.211.01
Dimension drawing: 4.20.01 - Dimension
Image: Image PNG
